ImagePRO-II is an advanced high-performance all-in-one video scaler, scan converter, switcher, and transcoder converting most input signal formats to most output formats. ImagePRO-II supports Analog, dual link DVI, HDMI, DisplayPort and 3G SDI signal formats, including 4K@30p via dual link DVI and DisplayPort. Loop-through outputs are provided for the Analog, DVI and SDI input and gen-lock signals. With features like 4K scaling, HDCP and EDID management, USB back-up and restore, extremely low latency converting modes, still store capture/import/export, ImagePRO-II is the industry-leading 4K scaler, converter, and switcher.

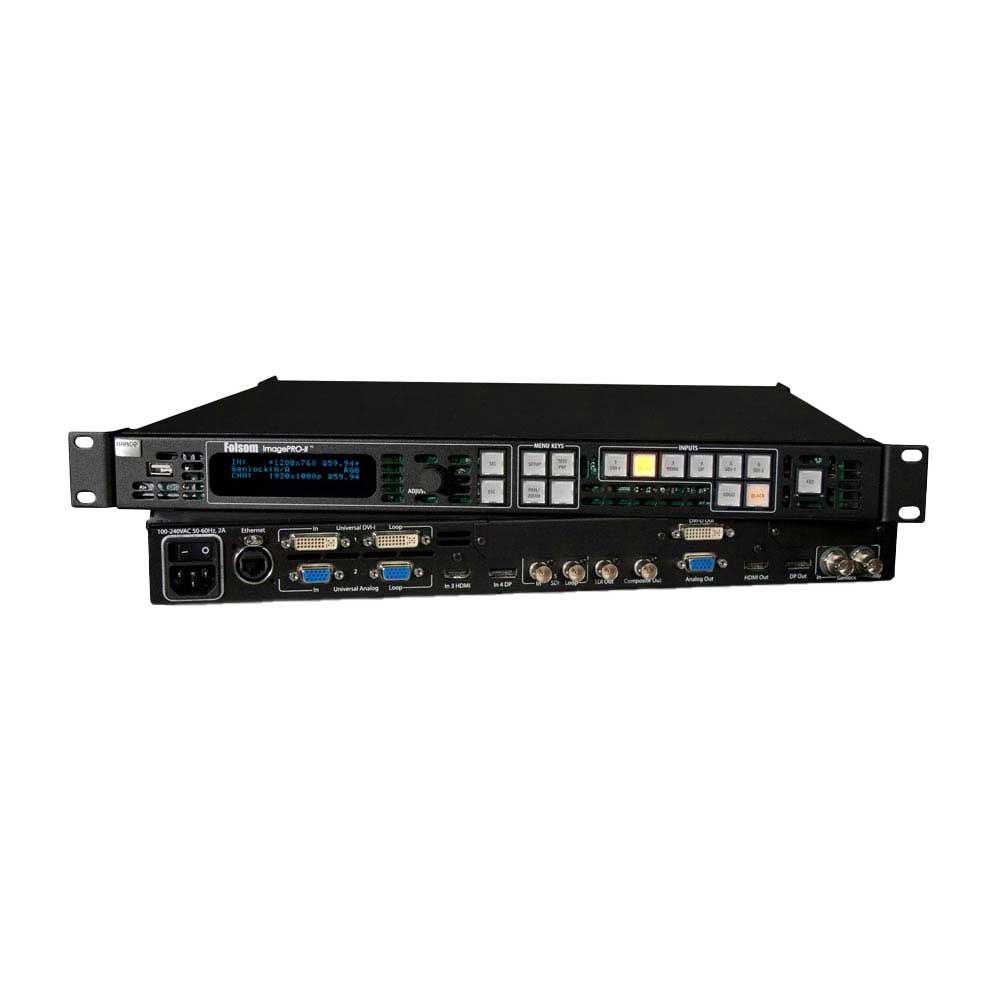

Barco ImagePro II
| Data Sheet |
click here |
| Genlock | Analog reference input/loop on BNC connectors; bi-level and blackburst at SD and tri-level at HD, or locked to any input signal. S3D Sync: input Din connector, output Din connector |
| Program output | One input source output across all connectors that support the selected output resolution. With dual output option, output connections can be selected to either follow the “A” scaler channel or the “B” scaler channel. |
| Video inputs | 5 fixed inputs (6 with dual output option)
|
| Video outputs |
6 fixed outputs (7 with dual output option)
|
| Still stores |
3 |
| Expandability | Dual output card and Audio output card available. |
| HDCP | HDCP compliant |
| Control | Ethernet RJ45, 10/100 Mbps autosense computer, tablet, smartphone via web browser. Control functions include: source input configuration, output format selection, test pattern selection, transition effect selection and control |
| Dimensions |
|
| Weight | 7.144 kg/15.75 lbs |
| Power | Input power: 100-240 VAC 50/60Hz 2a max |
